IWS45L-1D1350B-MCAFC
Product Hub Servo Catalog

IWS45L-1D1350B-MCAFC

Fuxing stepper motors provide high-performance two-phase and three-phase hybrid stepper motors with various sizes and output torques, single polarity or bipolar control, and single or dual axis. The products are divided into standard type, torque enhanced type, high protection type, etc., which can fully meet the various application needs of different users.
option:
  • IWS45L-1D1350B-MCAFC
  • IWS45L-1D1350B-MCAFC
  • IWS45L-1D1350B-MCAFC
  • IWS45L-1D1350B-MCAFC

1. Specifications

ModelIWS45L-1D1350B-MCAFC
Diameter Size110mm
Rated Voltage24VDC
Rated Current2.2 Arms
Maximum speed350rpm(Line speed   2m/s)
Rated Torque1.1 N.m
Peak Torque3 N.m
CommunicationUART+CAN
UART Baudrate115200bps，support   controlled by controller or PC software
CAN Baudrate500kbps/1Mbps set by   DIP switch
Protection   FunctionOver-Voltage,Low-Voltage,Over-load,Short-circuit,High   temperature,Speed-loss etc.
Operating   Temperature-10℃～40℃（Non-freezing）
Operating   Humidity5～95%RH（Non-condensing）
Storage   Temperature-10℃～70℃（Non-freezing）
Storage   HumidityBelow   90%RH（Non-condensing）
Protection   ClassIp67 except shaft
Weight1.3Kg
Suggested Load   (2 PCS)Below 30kg

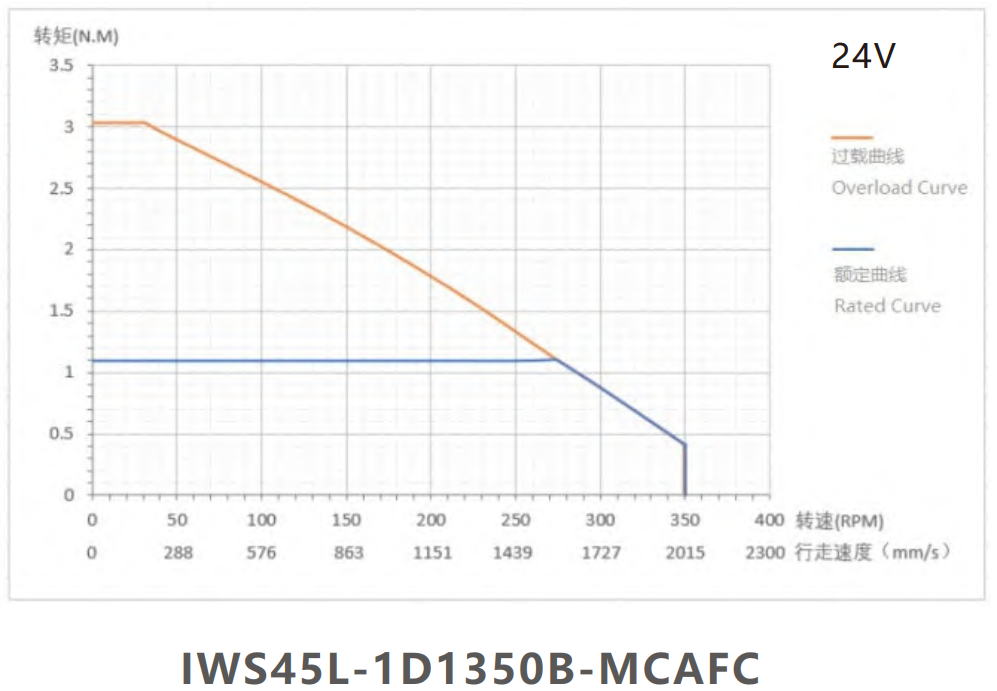

2. Torque Curveimage

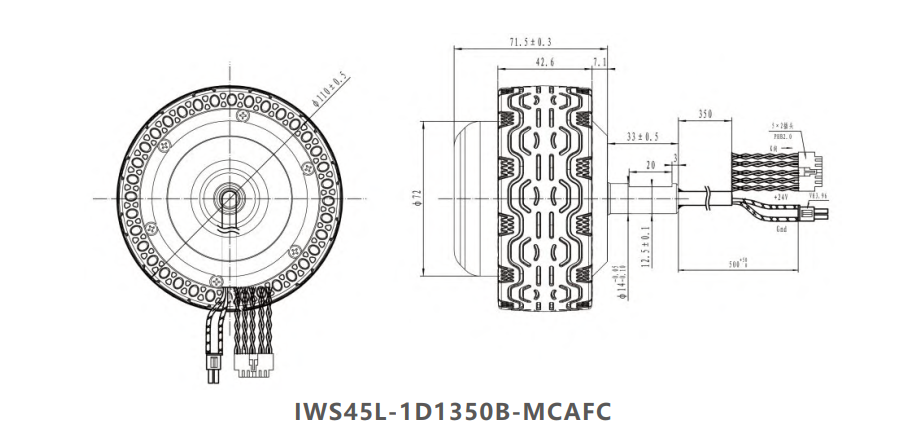

Motor size

Download
IWS Series Hub Motor Motor User Manual - Fulling Motor 1.1 MB
