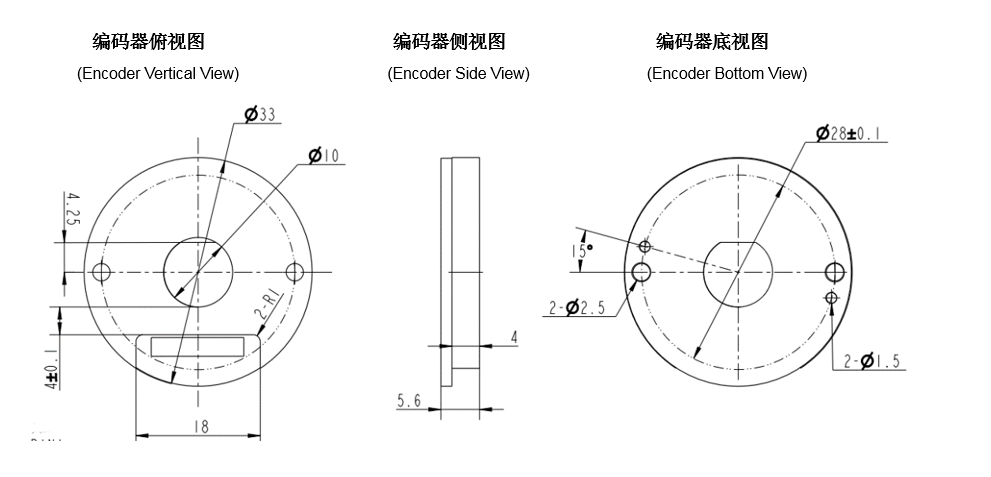

Motor Shaft   diameter

Suitable for shaft   diameter 4mm,5mm,6mm,6.35mm

Storage Temperature

-40℃～85℃

Environmental   conditions

Application

No corrosive, flammable, explosive, conductive   gas, liquid and dust.

Temperature

-25℃～80℃

Humidity

No more than 85% RH

Supply Voltage

5V±0.5V

Current Consumption

≤120mA

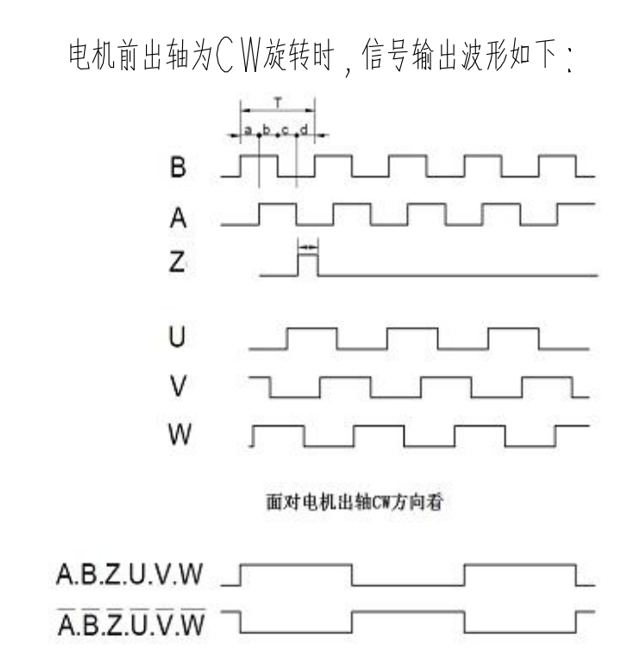

Differential   Single Output

5V,GND,Z-,Z+,B-,B+,A-,A+,HW-,HW+,HV-,HV+,HU-,HU+

Output Level mode

TTL Compatible

Index Width

1/4T or 1/2T or 1T

 (According to the needing)

Differential   Output Voltage

High Level   Output (VoH) ≥3.4V

Electrical Parameter

Low Level Output   (VoL) ≤0.5V

Differential   Signal Output Format

Line Drive 26C31

Optional   Resolution（Unit：CPR）

2500(According to the needing)

Pole-pairs

2/4/5(According)

HU/HV/HW

120°

Duty Cycle

50% ±10%

A/B Phase difference

 90°±10°

Frequency Response

≤500KHz

Note: The signal frequency = (Speed(Rpm) *  number of Lines)/60
